Short Test Pin - Test Probe 13 of IEC61032

Meets IEC CSA & UL requirements test probe 13 of Short test pin - Fig. 9 of EN 61032

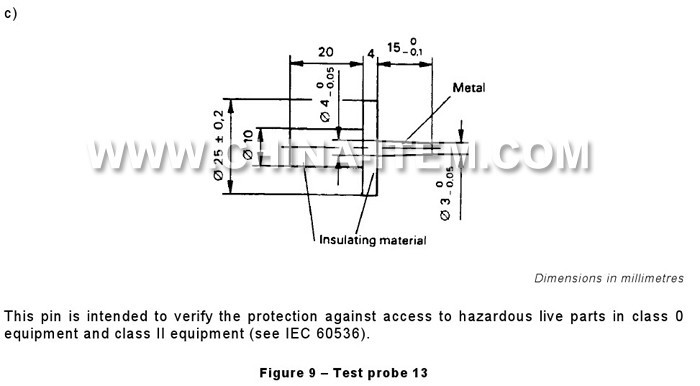

This Test Probe Pins (Figure 9 - Test probe 13 of IEC 61032) is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).

Conforms to:

Standard IEC 61032, IEC 60065, IEC 60335-1, IEC 60950, IEC 60601, IEC 60745 and UL etc.

Technical Parameter:

Test probe diameter:3 mm

Test probe length:15 mm

Baffle plate thickness:4 mm

Baffle plate diameter:25 mm

Handle length:20 mm

Handle diameter:10 mm
